LED Driver - Starfish

ESP32 based LED driver designed for use with ESPHome.

The pcb is designed with KiCad and has a ESP32-S3 with power and usb circuit. A total of four N-Channel FETs allow to switch 12V appliances (LED) upto 4.4A each. The four channels allow multiple LED strips or ones with RGBW etc.

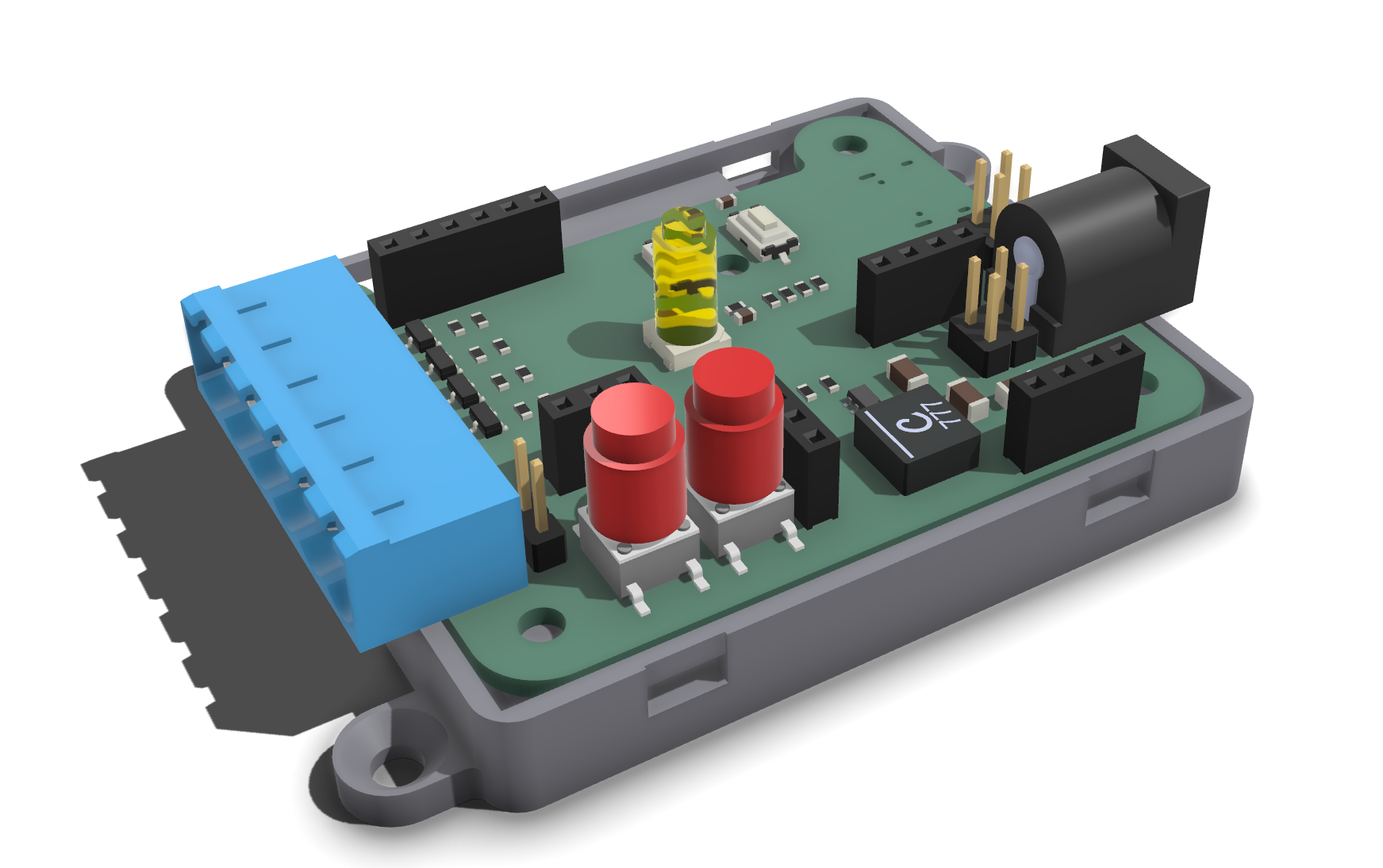

starfish-b-renderstarfish-b-render

Features

  • ESP32-S3 for use with ESPHome

  • 4 Open-Drain Channels for RGBW

  • 2 Buttons for user input

  • WS2812 LED

  • Multiple headers for further peripherals (I2C, 3V3, 5V, GPIOs)

  • 6V to 15V Input
